SLA and KPI in Solar Power Plant Operations: Key O&M Metrics

In solar power operations, effective O&M monitoring goes well beyond logging daily energy output. It requires evaluating system performance against precise technical data aligned with international standards such as IEC 61724, the globally recognized framework for measuring photovoltaic system performance.

For asset owners and businesses operating solar energy systems, a clear understanding of SLA and KPI frameworks is essential for managing technical risk, optimizing performance, and protecting return on investment (ROI) over the long term.

Key KPIs in Solar Power Plant Operations

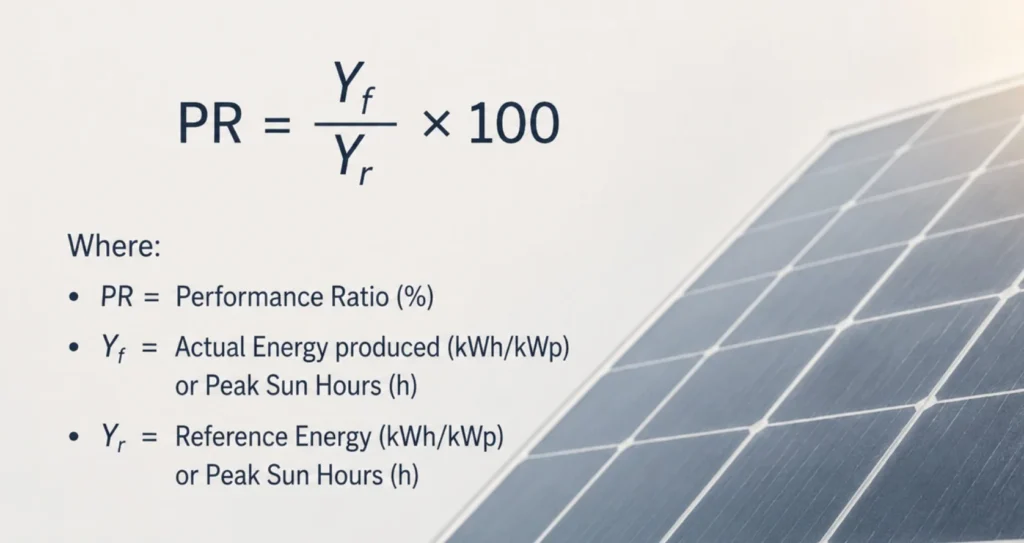

#1 Performance Ratio (PR)

Performance Ratio is one of the most critical indicators in solar energy systems, measuring how effectively a plant converts available solar irradiance into usable electricity.

• Definition: The ratio between actual energy output and theoretical energy output based on solar irradiance received.
• Industry benchmark: A stable, well-maintained system typically achieves a performance ratio solar benchmark of 75% to 85%.
• O&M significance: PR consolidates all system losses, including thermal degradation, soiling, shading, and equipment decline. If PR drops below 70%, it is a clear signal that hardware inspection is required to prevent sustained energy loss.

Practical Example

A solar plant with:

• Theoretical yield: 1,000,000 kWh
• Actual yield: 800,000 kWh
• Result: PR = 80%

This indicates strong operational performance. However, if PR falls from 80% to 70% under identical irradiance conditions, the root cause is likely panel soiling or inverter underperformance. In the context of SLA and KPI compliance, a sustained PR below threshold is a reportable event that triggers corrective action under the O&M service agreement.

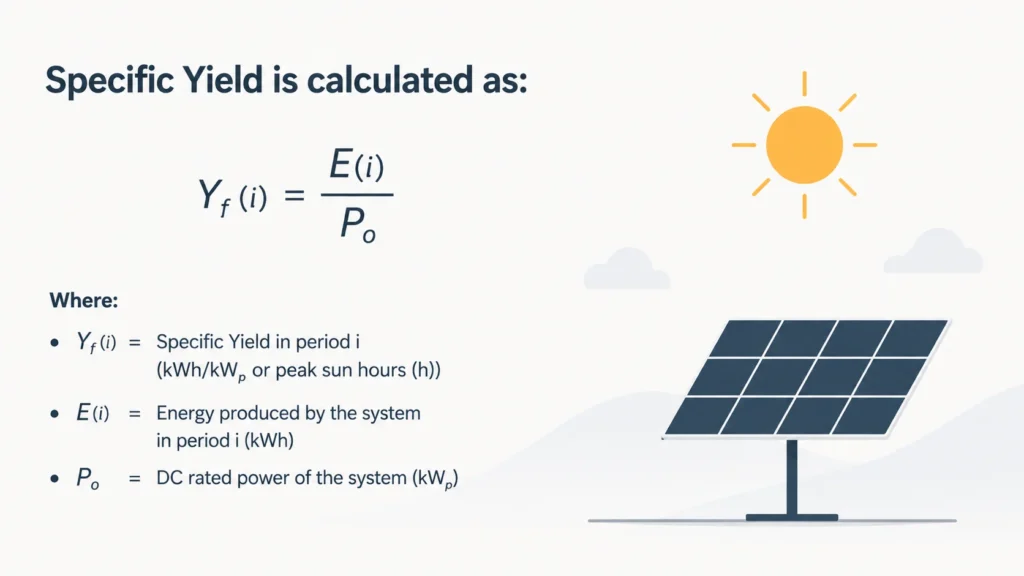

#2 Specific Yield

• Definition: The electrical energy generated per unit of installed nameplate capacity, expressed as kWh per kWp.
• O&M significance: This metric enables like-for-like performance benchmarking across projects of different sizes or in different geographic locations.

Practical Example

For a 1 MWp system in the same region:

• Baseline scenario: 1,400,000 kWh/year → Specific Yield of 1,400 kWh/kWp (strong performance)
• Measured scenario: 1,300,000 kWh/year → Specific Yield of 1,300 kWh/kWp, approximately 7% below baseline

When irradiance conditions remain unchanged, a decline in Specific Yield is typically caused by accumulated soiling, reduced inverter efficiency, or partial system underperformance. Based on industry O&M experience, a drop of 5 to 10% from the established baseline warrants an operational review and should not be overlooked.

#3 System Availability

• Definition: The proportion of time during which the system is grid-connected and actively generating electricity, relative to total potential generation hours (during daylight).
• O&M significance: This KPI directly measures system downtime and is a standard deliverable within most solar SLA and KPI frameworks.

Downtime in solar systems most commonly originates from inverter faults, DC cable failures, or grid interruptions. Professional O&M operations typically target System Availability of 98% or higher to protect generation output and long-term investment performance.

Practical Example

A solar plant in a given month:

• Total irradiance hours: 720 hours
• Downtime due to inverter fault: 6 hours
• Downtime due to grid outage: 10 hours
• SCADA connection loss (no impact on generation): 2 hours

Effective downtime affecting generation: 16 hours Availability = 704 / 720 = 97.8%

This represents a well-functioning plant with low downtime. However, monitoring and continuous improvement remain necessary to reach and maintain the 98% threshold specified in most O&M service level agreements.

#4 Capacity Utilization Factor (CUF)

• Definition: The ratio of actual annual energy output to the maximum theoretical output if the system were to operate at full capacity 24 hours a day, 365 days a year.
• Industry benchmark: Typically ranges from 18% to 25%, depending on geographic location and local irradiance conditions.

CUF provides a holistic view of overall system utilization and is especially relevant in large-scale industrial solar and solar farm projects.

Practical Example

A 1 MWp solar system:

• Actual annual output: 1,800,000 kWh
• Maximum theoretical output: 1 MW × 8,760 hours = 8,760,000 kWh
• CUF = 1,800,000 / 8,760,000 ≈ 20.5% (normal, in line with Vietnam’s irradiance profile)

If output drops to 1,500,000 kWh under the same conditions, CUF falls to approximately 17.1%, below the standard threshold. Potential causes include prolonged soiling, inverter derating or clipping, or elevated system downtime.

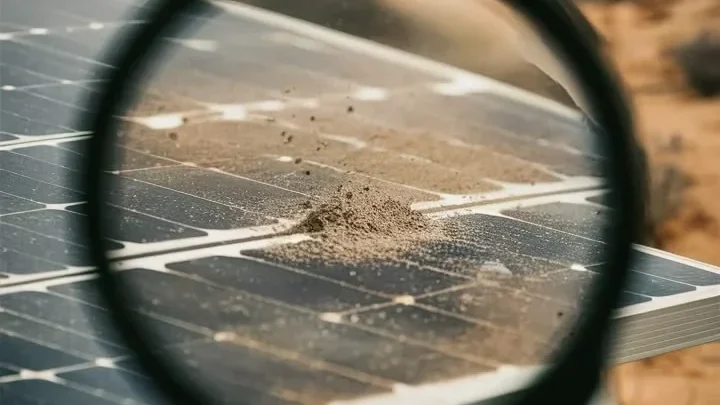

#5 Soiling Ratio and Thermal Losses

• Definition: Panel efficiency declines linearly as photovoltaic cell temperature increases, with an average degradation coefficient of approximately -0.35% to -0.45% per degree Celsius. Simultaneously, surface soiling creates a physical barrier that reduces the irradiance reaching the cells.
• O&M significance: This data forms the basis for scheduling panel cleaning cycles, enabling O&M teams to optimize cleaning costs against measurable energy loss.

Practical Example

A rooftop solar system at an industrial facility:

• After one month without cleaning, energy output reduced by approximately 5 to 7% due to soiling
• Cell temperature increases from 25°C to 55°C (a rise of 30°C): additional thermal loss of approximately 10 to 12%
• Combined total loss: up to 15 to 18%

For a system normally generating 150,000 kWh per month, these two factors can result in a loss of 22,000 to 27,000 kWh per month. Soiling and thermal degradation are gradual losses that accumulate significantly over time. Establishing data-driven cleaning schedules can substantially improve yield without additional capital expenditure.

#6 Inverter Efficiency

• Definition: The conversion efficiency of DC power from the solar array into AC power delivered to the grid.
• Industry benchmark: Modern inverters are expected to maintain a conversion efficiency of 98% to 99%.

The inverter is the central conversion unit of any solar energy system, and its performance directly determines overall energy output.

Practical Example

An inverter operating normally:

• DC input: 100,000 kWh
• AC output: 98,500 kWh
• Efficiency = 98.5% (compliant with standard)

After extended operation, the same inverter records:

• DC input: 100,000 kWh
• AC output: 96,500 kWh
• Efficiency = 96.5%, a reduction of approximately 2%

This decline may be caused by:

• Inverter thermal derating due to overheating
• Internal component degradation (capacitors, IGBT modules)
• Cooling system underperformance
• Operation outside the optimal MPPT range

Why Tracking SLA and KPI Matters for Solar Asset Management

In a solar energy system, KPIs serve not only as performance monitoring tools but also as early warning indicators for technical risks such as hotspots, potential-induced degradation (PID), or progressive module efficiency decline.

Continuous monitoring allows O&M operators to detect anomalies before they result in significant generation losses or equipment damage. The most effective approach combines real-time monitoring with structured preventive maintenance, which is especially important in large-scale solar facilities.

Businesses operating solar assets should partner with O&M providers that have established quality frameworks and robust reporting processes. This ensures that SLA and KPI commitments are clearly defined, consistently measured, and transparently reported throughout the asset lifecycle.

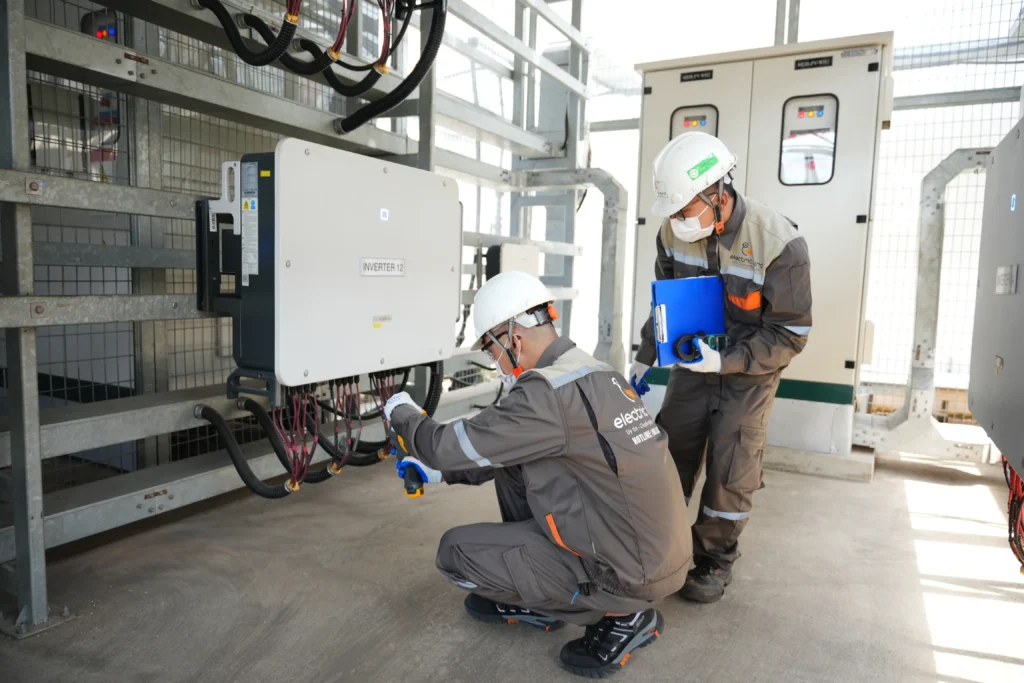

Electric Bird: Your Trusted Solar O&M Partner
